Thông số kỹ thuật
Kích thước (mm)
(*) Trọng lượng
Thời gian lưu điện
Chạy bán tải 24.4 phút (350 Watts) / Chạy toàn tải 10.2 phút (700 Watts).
Thông tin bộ lưu điện:

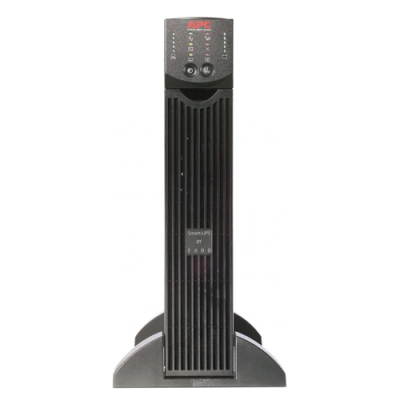

Bộ lưu điện UPS APC SURT1000XLI | |
|---|---|
| Model |
•Bộ lưu điện UPS APC SURT1000XLIAPC Smart-UPS RT 1000VA 230V |
| P/N | •Bộ lưu điện UPS APC SURT1000XLI |
| Output | • Output Power Capacity: 700 Watts / 1000 VA • Max Configurable Power: 700 Watts / 1000 VA • Nominal Output Voltage: 230V • Output Voltage Note: Configurable for 220 : 230 or 240 nominal output voltage • Output Voltage Distortion: Less than 5% at full load • Output Frequency (sync to mains): 47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60 Hz nominal • Crest Factor: up to 3 : 1 • Waveform Type: Sine wave • Output Connections: (6) IEC 320 C13, (2) IEC Jumpers |
| Input | • Nominal Input Voltage: 230V • Input Frequency: 50/60 Hz +/- 5 Hz (auto sensing) • Input Connections: IEC-320 C14 • Input voltage range for main operations: 160 - 280V • Input voltage adjustable range for mains operation: 100 - 280V |
| Bateries & Runtime | • Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof • Typical recharge time: 3 hour(s) • RBC™ Quantity: 1 • Typical Backup Time at Half Load: 24.4 minutes (350 Watts) • Typical Backup Time at Full Load: 10.2 minutes (700 Watts) |
| Communications & Management | • Interface Port(s): DB-9 RS-232,SmartSlot • Available SmartSlot™ Interface Quantity: 1 • Control panel: LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators • Audible Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm • Emergency Power Off (EPO): Optional |
| Physical | • Dimensions: 432.00 mm x 85.00 mm x 483.00 mm • Weight: 23.00 KG • Rack Height: 2U |
| Environmental | • Operating Environment: 0 - 40 °C • Operating Relative Humidity: 0 - 95% • Operating Elevation: 0-3000 meters • Storage Temperature: 20 - 50 °C • Storage Relative Humidity: 0 - 95% • Storage Elevation: 0-15000 meters • Audible noise at 1 meter from surface of unit: 50.00 dBA • Online Thermal Dissipation: 239.00 BTU/hr |
| Conformance | • Regulatory Approvals: C-tick,CE,EN 50091-1,EN 50091-2,EN 55022 Class A,EN 60950,EN 61000-3-2,GOST,VDE • Standard Warranty: 2 years repair or replace,optional on-site warranties available,optional extended warranties available |
Bảo hành : 2 năm
